How Reverse Osmosis Works (Complete Guide)

The Mechanism: Pressure Overcomes Natural Osmosis

In natural osmosis, water moves from a dilute solution (clean water) toward a concentrated solution (contaminant-laden water) through a semipermeable membrane — nature trying to equalize concentrations. Reverse osmosis applies 50-80 PSI of pressure to overcome this natural flow direction, pushing water from the contaminated side through the membrane and collecting purified permeate on the clean side.

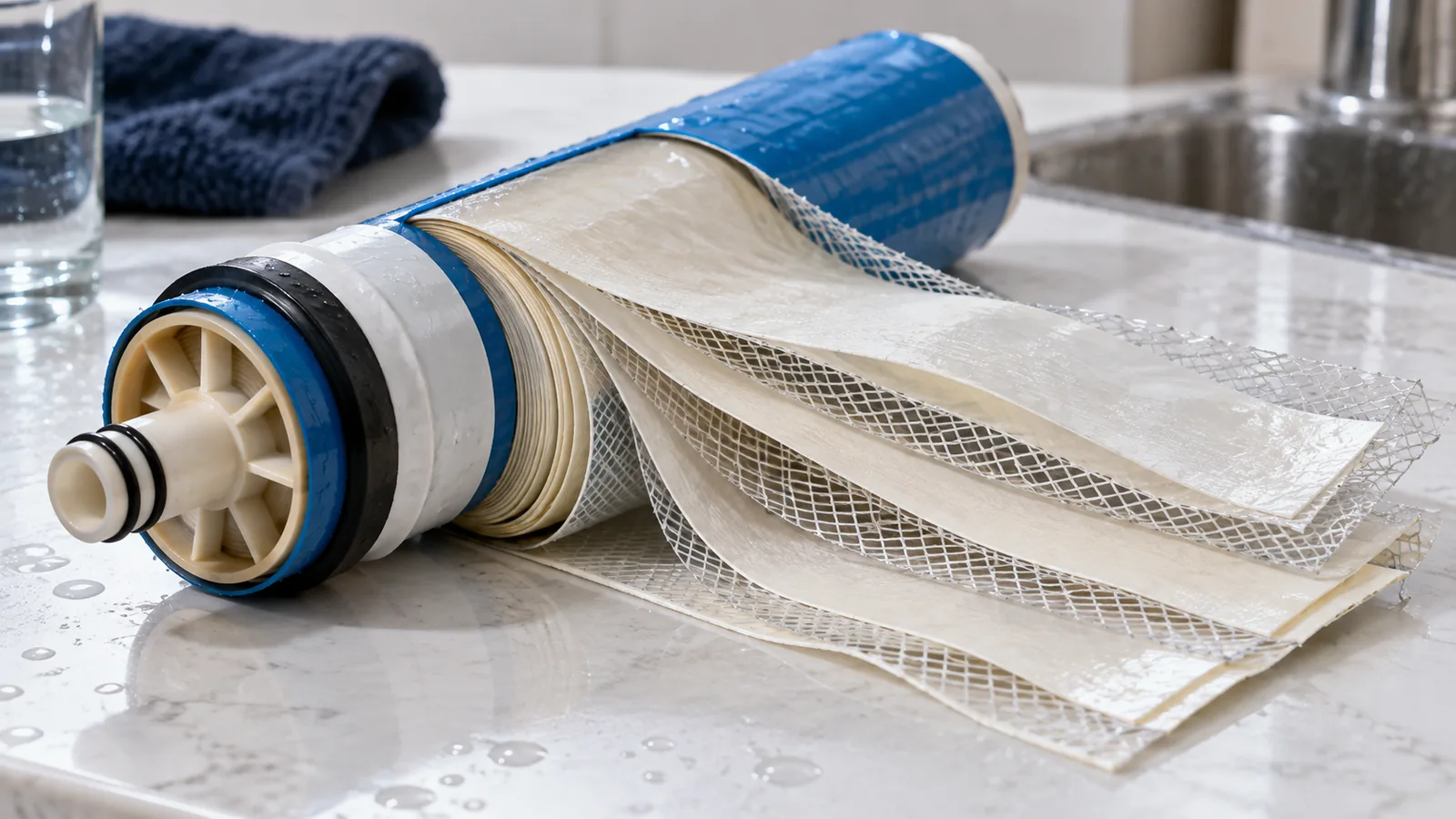

The membrane itself is a thin-film composite (TFC) — multiple layers of polymer sheets with pores of approximately 0.0001 microns (0.1 nanometers). Water molecules (0.00028 microns) pass through. Dissolved contaminants larger than water molecules — lead ions, nitrate molecules, PFAS compounds, fluoride, arsenic — are physically blocked and flushed to the drain as concentrate wastewater. The mathematics of scale: a human hair is 70,000 nanometers wide; an RO membrane pore is 0.1 nanometers. Nothing larger than a water molecule reliably passes.

Multi-Stage RO System Breakdown

RO Performance: Real Test Results from Our Cincinnati Home

RO Limitations: What It Does Not Remove

The primary RO limitation is volatile organic compounds (VOCs). VOCs have boiling points near or below water and can pass through the membrane in dissolved gas form. The carbon pre-filter handles most VOCs before they reach the membrane — this is why skipping carbon pre-filtration is a mistake. RO also does not kill bacteria or viruses; it physically blocks them at the membrane, but a compromised membrane can allow microbial passage. For well water with bacterial risk, add a UV post-filter after the RO stage.

The other legitimate limitation is wastewater ratio. Traditional tank RO systems produce 3-4 gallons of wastewater for every gallon of purified water (3:1 to 4:1 ratio). Modern tankless systems with 400-800 GPD membranes have improved this to approximately 1.5:1. If water conservation is a priority: choose a high-efficiency tankless system. If you are on a well: the wastewater goes back to the water table, not the sewer.
