Ion Exchange Filtration Explained

Ion Exchange: Trading Bad Ions for Better Ones

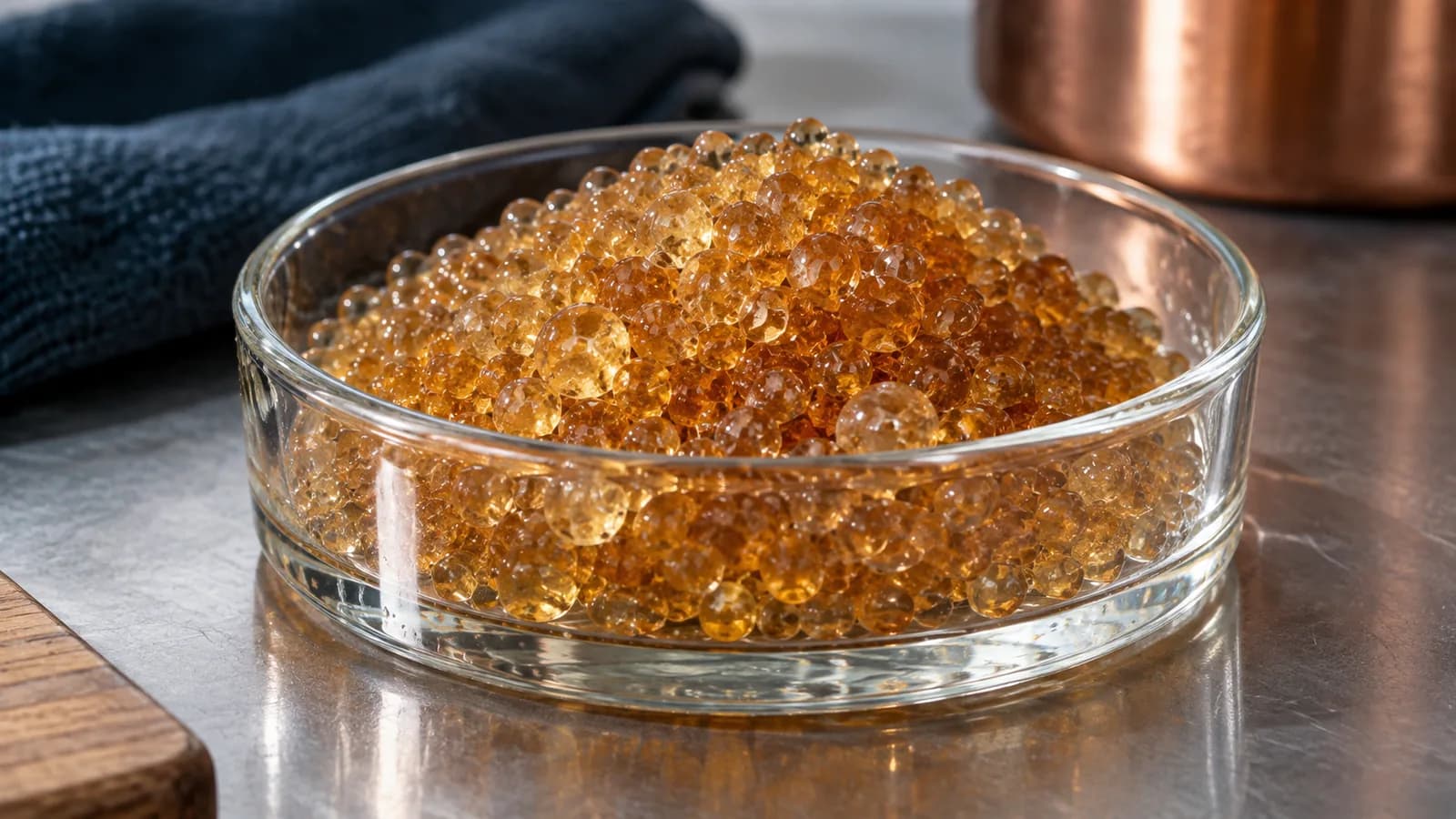

Ion exchange is the technology inside every water softener, and it is also used in specialized filter media for nitrate removal, PFAS removal (anion exchange resin), and heavy metal reduction. The core mechanism: water flows through a bed of charged polymer resin beads. Ions in the water are attracted to oppositely charged sites on the resin. Target contaminant ions stick to the resin, releasing less harmful replacement ions into the water.

Cation exchange (positive ions): the resin holds sodium (Na+) or hydrogen (H+), which it trades for calcium (Ca2+), magnesium (Mg2+), or lead (Pb2+). This is how water softeners work. Anion exchange (negative ions): the resin holds chloride (Cl-) or hydroxide (OH-), which it trades for nitrates (NO3-), sulfates (SO4 2-), or PFAS compounds. Each application requires the right resin chemistry.

Ion Exchange Applications in Residential Water Treatment

Hardness Testing Before Buying a Softener

Water hardness is measured in grains per gallon (GPG) or milligrams per liter (mg/L, equivalent to ppm). 1 GPG = 17.1 mg/L. Hardness categories: soft (0-3 GPG), slightly hard (3-7 GPG), moderately hard (7-10 GPG), hard (10-15 GPG), very hard (15+ GPG). A water softener makes economic sense at hardness above 7 GPG — below that threshold, the salt cost and maintenance rarely justify the system. Free hardness test strips are available at most hardware stores; a comprehensive test including iron content (which can damage softener resin) is worth the $15-$30 investment before sizing a softener.
